Hi there.
I've a question concernig the RV 120w VLAN configuration. I try to use one Port (Port 4) for a absolute separate LAN with a new Network 192.168.1.0 255.255.255.0.
The default Network on all other Ports is 192.168.10.0 255.255.255.0.

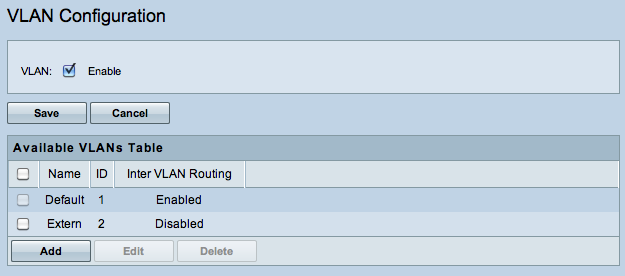

I've screenshots attached which shows my configuration:
I've used "Access" Mode (see Admin Guide Page 40 "Access (default)—In access mode, the port is a member of a single VLAN. All data going into and out of the port is untagged.") because my port is the VLAN. I've disabled "Inter VLAN Routing" because the two networks are absolute separated.
Now if i plug in a device i.e. my PC, DHCP dows not work, the port 4 is not accessible - thats the end.
So what I'm doing wrong? Plz help!
- Labels:
-
LAN Switching
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
07-29-2010 08:36 PM
I have no idea if this will work or not, but have you tried using a 16 subnet (255.255.0.0) for the 2nd VLAN?
I have a similar setup, but with different subnets, VLAN 1 = 10.15.80.0/24 and VLAN 2 = 192.168.2.0/24
