12-11-2023 06:46 AM
Switch Configuration
Switch 1 - Port 1/0/7 to CPE
Port 1/0/8 to Switch 2 Port 1/0/5
Switch 2 - Port 1/0/8 to Swith 3 Port 1/0/5
Switch 3 - Port 1/0/6 to untagged device on VLAN 1130
Port 1/0/5 & 1/0/8 - Trunk - Tagged 2500
Port 1/0/7 - Customer Mode - Untagged 2500
Port 1/0/6 - Access - 1130
I have three switches with the same configuration, I have one device tagged with VLAN 1130 connected to port 1/0/7 and one device untagged connected to port 1/0/6. However, I cant seem to have the two devices talking to each other is there any that I can get the two to talk. Port 1/0/7 must be in customer mode and port 1/0/6 connects to other devices in VLAN 1130. When both devices are tagged and in port 1/0/7 on the 2 end switches they talk, but I need the traffic to leave 1/0/6 in acces mode on VLAN 1130.
This is all new to me and cannot seem to find the right way to do it, any help would be appreciated!
Thank you.
12-11-2023 07:03 AM
Hello @MaxStLedger
On the CPE side, its interface facing switch1 is a sub-interface ?
If yes, on Sw1 side, interface 1/0/7 facing this CPE, pelase share the configuration.
12-11-2023 07:24 AM
12-11-2023 07:31 AM
Thanks @MaxStLedger
I don't see the command:
switchport mode dot1q-tunnel
You want QinQ between Switch 1 and Switch 3 ? You want two hosts, vlan 1130, discuss together throught QinQ Tunnel with TAG 2500 ?
12-11-2023 08:16 AM
can you share the topology ?
MHM
12-12-2023 01:28 AM
12-12-2023 01:54 AM - edited 12-12-2023 01:55 AM
Hello @MaxStLedger
Thanks for that clear topology.
## Consider to change IP address on Routers R1 and R2 and the interfaces names ##
Example:
R1(config)#interface GigabitEthernet 0/0
R1(config-if)#no shutdown
R1(config-if)#interface fastEthernet 0/0.1130
R1(config-subif)#encapsulation dot1Q 1130
R1(config-subif)#ip address 192.168.113.1 255.255.255.0
!
SW1(config)#interface GigabitEthernet 1/0/7
SW1(config-if)#switchport access vlan 2500
SW1(config-if)#switchport mode dot1q-tunnel
SW1(config)#interface GigabitEthernet 1/0/5
SW1(config-if)#switchport trunk encapsulation dot1q
SW1(config-if)#switchport mode trunk
SW1(config-if)#switchport mode trunk allowed vlan 2500
!
SW2(config)#interface GigabitEthernet 1/0/5
SW2(config-if)#switchport trunk encapsulation dot1q
SW2(config-if)#switchport mode trunk
SW2(config-if)#switchport mode trunk allowed vlan 2500
SW2(config)#interface GigabitEthernet 1/0/8
SW2(config-if)#switchport trunk encapsulation dot1q
SW2(config-if)#switchport mode trunk
SW2(config-if)#switchport mode trunk allowed vlan 2500
!
SW3(config)#interface GigabitEthernet 1/0/5
SW3(config-if)#switchport trunk encapsulation dot1q
SW3(config-if)#switchport mode trunk
SW3(config-if)#switchport mode trunk allowed vlan 2500
SW3(config)#interface GigabitEthernet 1/0/6
SW3(config-if)#switchport access vlan 2500
SW3(config-if)#switchport mode dot1q-tunnel
!
R2(config)#interface GigabitEthernet 0/0
R2(config-if)#no shutdown
R2(config-if)#interface fastEthernet 0/0.1130
R2(config-subif)#encapsulation dot1Q 1130
R2(config-subif)#ip address 192.168.113.2 255.255.255.0
The switchport mode dot1q-tunnel command tells the switch to tag the traffic and switchport access vlan command is required to specify the Q-in-Q VLAN of 2500. Make sure that VLAN 2500 is available on SW1, SW2, and SW3.
12-12-2023 02:51 AM - edited 12-12-2023 02:53 AM
Hi M02@rt37, Thanks for the reply
I am using CBS350 switches and these do not have the command:
SW1(config-if)#switchport mode dot1q-tunnel
I have the following options in switchport mode:
general
access
trunk
customer
vlan-mapping
private-vlan
I am also using standard routers with VLAN tag 1130, not cisco.
Could you please advise, many thanks
12-12-2023 03:02 AM
12-12-2023 03:49 AM
It needs to come out the other end tagged or untagged as 1130 and not a customer port, do you know how this can be achieved?
Thanks
12-12-2023 05:18 AM - edited 12-12-2023 05:18 AM
Selecting this option 'customer' places the interface in QinQ mode. This enables you to use your own VLAN arrangements (PVID) across the provider network. The device is in Q-in-Q mode when it has one or more customer ports.
switchport customer and add vlan 2500. This is the quivalent of switchport mode dot1q-tunnel command. Apply this, on Switch 1 interfaces Port 1/0/7 and Switch 2 Port 1/0/6 facing Routers.
12-12-2023 05:53 AM
it one of three
using MPLS VPWS
QinQ
or using VLAN Mapping
Configuring VLAN Mapping (cisco.com)
check vlan mapping since your one side SW can not config with QinQ
MHM
12-13-2023 03:47 AM
I am trying to follow the configure VLAn mapping guide on cisco and it is giving the following message:
'Cannot create new VLAN mapping due to insufficient resource allocation'
Do you have any idea why this is happening, I think this could be the way to make it work as QinQ will not
Thanks
12-13-2023 05:34 AM
There are many VLAN in SW?
How you config it can you share commands
MHM
12-13-2023 05:49 AM

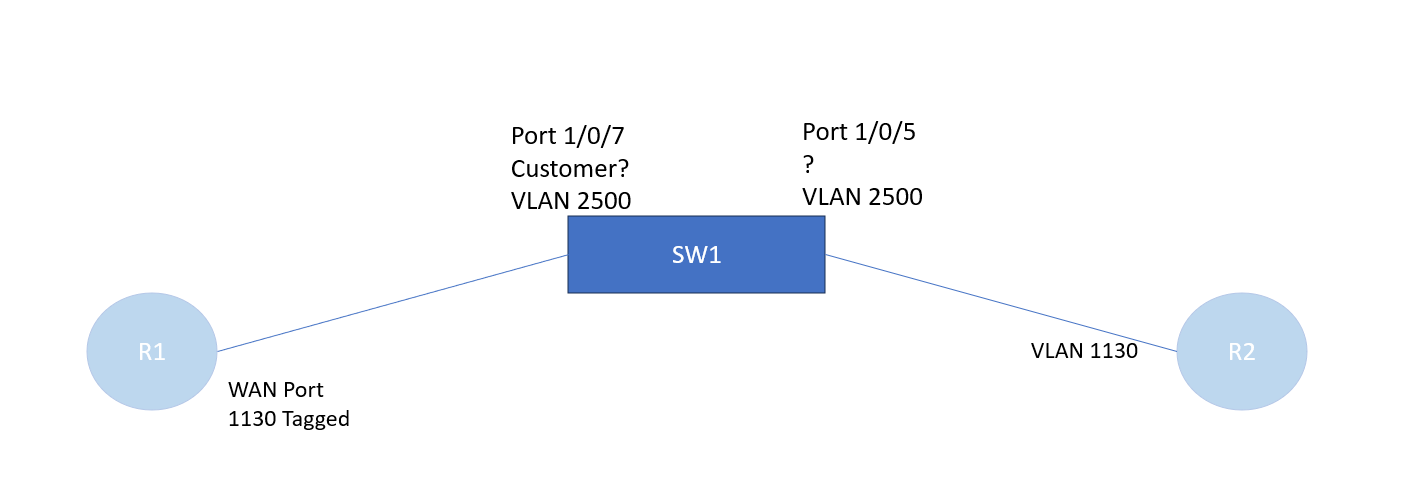

I am now working on just the one switch, I have attached an updated topology.
There are two VLANS on SW1 - 2500 and 1130
I am following the steps on the Cisco website - Here and when I reach step 9 I am given 'Cannot create new VLAN mapping due to insufficient resource allocation'
Thanks
