Cannot start gui in initial config in c9800

zshowip
Enthusiast
Enthusiast

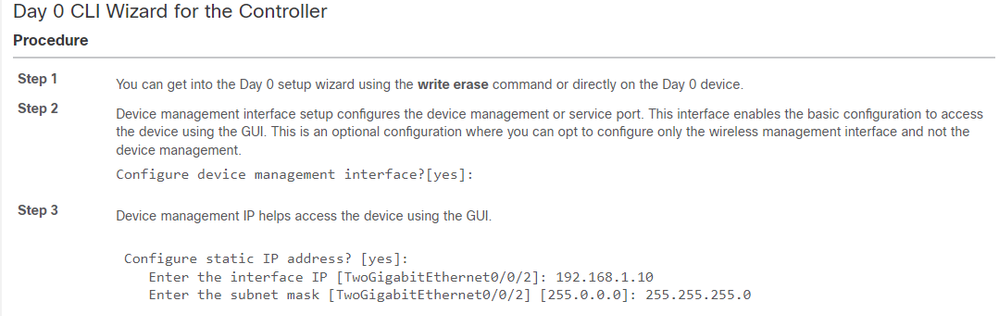

Hello, the below is protocol for C9800 wlc initial config. it configures physical port TwoGigabitEthernet0/0/2 as mgmt interface. We want to use layer2 svi as mgmt interface. but if we do so, it would not let us to access wlc via gui. do you think so?  Is there a command for gui to be up? thanks

https://www.cisco.com/c/en/us/td/docs/wireless/controller/9800/9800-L/installation-guide/b-wlc-ig-9800-L/Power-Up-and-Initial-Configuration.html


3 Replies 3

marce1000
VIP Mentor VIP Mentor
VIP Mentor



 -  Review the c9800   configuration with the CLI (I assume SSH access is already working for the moment) command : show  tech   wireless , have the output analyzed by  https://cway.cisco.com/tools/WirelessAnalyzer/  , please note do not use classical show tech-support (short version) , use the command denoted in green for Wireless Analyzer.               Checkout all advisories!

 M.

Scott Fella
Hall of Fame Guru Hall of Fame Guru
Hall of Fame Guru

You must be changing the configuration after the wizard.  What does your configuration look like for your svi and http?  I'm also assuming you have a trustpoint and you disabled http and re-enabled http(s) after you made your other changes?

-Scott
*** Please rate helpful posts ***

Arshad Safrulla
VIP Advocate VIP Advocate
VIP Advocate

This configures the service port, not the wireless management interface. I almost haven't used any Day0 Configuration wizard in any of the Cisco appliances for a long time, I am mostly comfortable with skipping it and configuring whatever I need either from CLI or GUI. I also believe that this wizard has lot of configuration limitations.

However, to skip the 0 day `wizard in GUI you need to configure the ap country in the WLC via CLI. To configure the AP country forst you need to shut down the 2.4 and 5Ghz globally in the WLC. Then configure the country and prepend no to the commands to unshut 2.4 and 5Ghz.
