Mobility tunnel between 5508[Anchor] - 9800 [Foreign]

[Nishad Dadhaniya]

Trying to set up Mobility tunnel between 5508[Anchor] - 9800 [Foreign]

5508 is already on the IRCM supported version as follows AIR-CT5500-K9-8-5-182-104.aes, I can't see any option under GUI/CLI for security mobility, as i understood on 9800 it will be enabled by default and opposite side required the same settings.

EDIT: Figured it out, under Controller > Mobility configuration > Enable New Mobility (converged access) was Enabled, disabled that option (It will reboot controller) and I can see option to enable secure mobility option under mobility groups & Tunnel came up successfully.

[marce1000]

 - Review this https://www.cisco.com/c/en/us/support/docs/wireless/catalyst-9800-series-wireless-controllers/213913-building-mobility-tunnels-on-catalyst-98.html#anc27 for guidelines  (controller model may not exactly match but content could be helpful)

 M.

[balaji.bandi]

is this screenshot from 5508 ? that was old 8.2 /8/3 code you refferring.

[Nishad Dadhaniya]

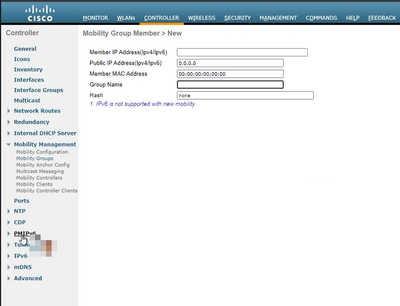

You are right screenshot in the post is from cisco documentation: Please find below post replay which contains image version as well as the screenshot from the mobility page: LINK

[Scott Fella]

@Nishad Dadhaniya you should post some screen shots of your controller.  Include one with the version you are running which is on the main page along with the mobility page where you don't have the option you are showing.

Maybe try the recommended IRCM version listed in the downloads:

Software Download - Cisco Systems

[Nishad Dadhaniya]

Yes, I upgraded with IRCM IOS 2 times with different IOS, Last one i tried was AIR-CT5500-K9-8-5-182-104.aes

[Scott Fella]

Glad you figured it out.... I don't know anyone who ever enabled new mobility.  That was something that caused so many issues and was only used with the old converged access wireless.
