Cisco C9500 Probleme

walidake
Level 1
Level 1

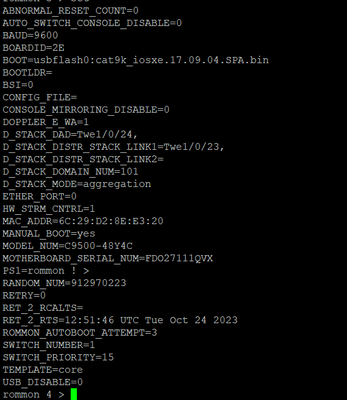

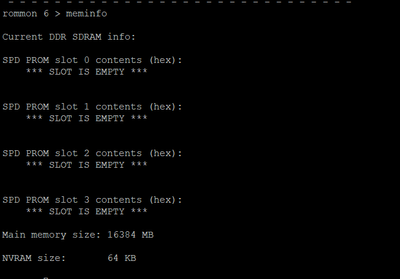

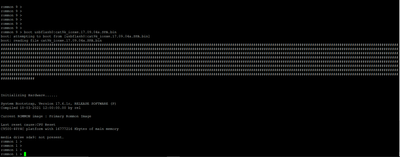

Hello there, could someone help me with an issue I'm experiencing with the Cisco C9500 switch? Following a recent complaint, I investigated and discovered that the switch stack is currently in ROMMON mode. I attempted to boot from a USB flash drive containing an image, but it continued to reboot into the same ROMMON mode. Upon running the command "show bootflash:", I received a message indicating that the media drive was not found. I'll provide screens to illustrate the situation further. Any assistance would be greatly appreciated!





    


1 Reply 1

balaji.bandi
Hall of Fame
Hall of Fame

As you mentioned this switch part of SVL

can you post output from other switch?

show version

dir bootflash:/

show switch

(also can you remove all the connections and boot (post complete boot logs in  TEXT file no screenshot to help you)

BB
