AireOS Migration to IOS-XE - Mobility Group and Roaming

[awatson20]

We are replacing several AireOS controllers with the 9800 platform operating in IOS-XE. At the same time, we are replacing legacy AP models(2600/2700) with the 9120 model AP. As part of this transition, the AireOS and IOS-XE controllers will have to coexist. My understanding is this is achieved through establishing a mobility group between controllers. Once the legacy AP's have been replaced, the environment will be only IOS-XE controllers and 9120 access points. I wanted to get feedback and input from anyone that has went through this similar process and specifically how the roaming behavior between controllers occurred and if this was stable. Are there any other caveats to be aware of? The AireOS controllers are on 8.5 code and cannot be upgraded due to the legacy AP models. Thanks.

[David Ritter]

Sorry, but I never mix WLC's in a building.  .

[Rasika Nayanajith]

The general recommendation is not to enable mobility between AireOS & IOS-XE (technically it works with specific codes, however since AireOS is the end of support, Cisco will not spend time & effort to test & fix all inter-roaming related issues between these wlcs). In that scenario even if you find some roaming issues between those WLCs, chances are low that you will able to get a fix from Cisco.

My suggestion is to go with IOS-XE 17.9.4 which still supports wave 1 APs (1700/2700/3700 series AP) and parallelly deploy WLC (without using the same mgt IP of existing WLC). Then test all your SSID with the new controller in a specific area (migrating a few APs to new WLC). If everything is good, then do a given floor/building cutover during a maintenance window.

HTH
Rasika
*** Pls rate all useful responses ***

[Leo Laohoo]

Upgrade the controller to 17.9.3 and move the 91XX and 2700/3700 into the 9800.

The controller will never allow the 2600/3600 to join even though the 2600/3600 can support the code.

APx600 with CAPWAP 17.12.1

[Scott Fella]

Please really take in what others have said in their replies. The main thing is that you have successfully tested with the new platform, code and access points. How you test is up to you but when you decide to either migrate to the 9800 or feel like you want to keep both, you need to test. The testing will allow you to make the smart decision. You don’t want to even bring up the 9800 with the 9120’s if you haven’t tested because you will occur an outage if things do not function correctly. Even with co-existing both old and new, if roaming is an issue when testing, you should be aware of that during testing and figure out a plan to deploy.
Test everything 100% and document what is working and what is not as that will be your risk assessment.

[Rich R]

If you decide to use IRCM mobility between AireOS and IOS-XE (despite the advice above) then make sure you deploy AireOS 8.5.182.108 (below) on the 5508 and follow the guides carefully.

[mandip kaloti]

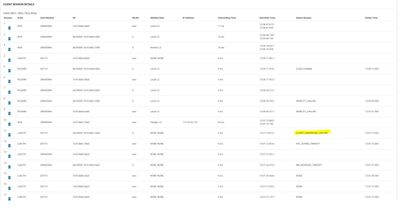

 I can see Cisco 8821 disconnects from wifi when roam from 8540s to 9800 zone and got stuck in ip learn state(may be bcz of mobility failure message) as per above debug while roaming from 9800s to 8540s seems seamless..will appreciate your inputs(WLCs are on 17.9.4a and 8.10.183.0 code).

[Leo Laohoo]

Highlighted says "CLIENT_CREDENTIALS_FAIL" (and NOT "IP Learning").

[mandip kaloti]

Yes but thats the generic message ..did not touched device config while roaming across wlc.and its EAP-FAST(dot.1x)

[Leo Laohoo]

Is this the only device that is not able to join the new WLC?

Can this device still join the old controller?

[mandip kaloti]

I have reverted the WAPs from 9800 to 8540 and kept few waps on 9800 for testing purpose..I have many cisco 8821s which are having issues, this is the latest and look in FT roaming , client got stuck in IP learn state while ISE show authentication passed

[Leo Laohoo]

On the 9800, post the complete output to the command "sh wireless mobility summary".

What firmware version is the 8540 on?

[Rich R]

> What firmware version is the 8540 on?
@mandip kaloti said "WLCs are on 17.9.4a and 8.10.183.0 code"

So I guess step number 1 is upgrade 8540 to 8.10.190.0 as per TAC recommended link below.
