RF Profile assigned in RF Tag is not applied to the APs
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
04-19-2023 12:26 AM
Hi, I'm trying to apply a RF profile to a group of APs (APs are assigned the same RF Tag) but failed. These are the steps I followed.

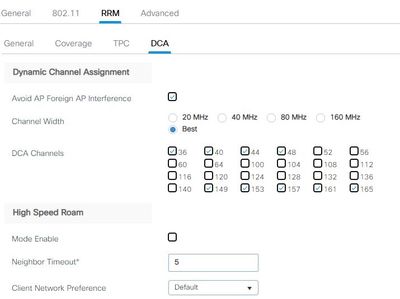

1) Create a RF profile (Under RRM -> DCA I have selected only specific channels)
2) Assigned the created RF profile to the RF Tag (I Have created a RF profile only for the 5GHz band)

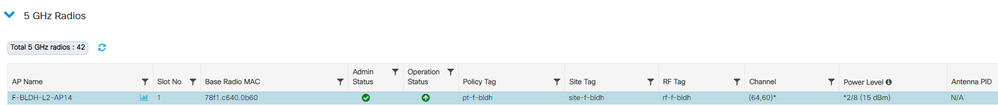

3 Restarted APs in that RF Tag is assigned. But still, those APs are transmitting other channels although the RF Tag and RF profile is assigned to those.
Can anyone please tell me why this RF profile is not applied to the APs?
Thank you
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
04-19-2023 12:33 AM
What is the WLC firmware version?
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
04-19-2023 01:25 AM
Its Cisco Catalyst 9800-L Wireless Controller with the firmware version 17.6.5
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
04-19-2023 02:06 AM
- Have a checkup-review of your 9800-L Wireless Controller current configuration with the CLI command : show tech wireless , have the output analyzed with : https://cway.cisco.com/wireless-config-analyzer
Checkout all advisories , correct issues if needed then try your (initial) actions again ,
M.
-- Each morning when I wake up and look into the mirror I always say ' Why am I so brilliant ? '
When the mirror will then always repond to me with ' The only thing that exceeds your brilliance is your beauty! '
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
04-19-2023 09:06 AM
You mentioned that you created the RF tag and assigned the RF profile but did you apply that RF tag to the AP (you didn't mention it)?
"show ap tag summ" will show you what tags are assigned to the APs (and the source) - my guess is you forgot to assign the tag to the AP.
For example:
ap filter name rf-f-bldh
ap name-regex ^bldh.*
tag policy bldh
tag rf rf-f-bldh
tag site bldh
Please click Helpful if this post helped you and Select as Solution (drop down menu at top right of this reply) if this answered your query.
------------------------------
TAC recommended codes for AireOS WLC's and TAC recommended codes for 9800 WLC's
Best Practices for AireOS WLC's, Best Practices for 9800 WLC's and Cisco Wireless compatibility matrix
Check your 9800 WLC config with Wireless Config Analyzer using "show tech wireless" output or "config paging disable" then "show run-config" output on AireOS and use Wireless Debug Analyzer to analyze your WLC client debugs
Field Notice: FN63942 APs and WLCs Fail to Create CAPWAP Connections Due to Certificate Expiration
Field Notice: FN72424 Later Versions of WiFi 6 APs Fail to Join WLC - Software Upgrade Required
Field Notice: FN72524 IOS APs stuck in downloading state after 4 Dec 2022 due to Certificate Expired
- Fixed in 8.10.196.0, latest 9800 releases, 8.5.182.12 (8.5.182.13 for 3504) and 8.5.182.109 (IRCM, 8.5.182.111 for 3504)
Field Notice: FN70479 AP Fails to Join or Joins with 1 Radio due to Country Mismatch, RMA needed
How to avoid boot loop due to corrupted image on Wave 2 and Catalyst 11ax Access Points (CSCvx32806)
Field Notice: FN74035 - Wave2 APs DFS May Not Detect Radar After Channel Availability Check Time
Leo's list of bugs affecting 2800/3800/4800/1560 APs
Default AP console baud rate from 17.12.x is 115200 - introduced by CSCwe88390
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
12-11-2024 07:50 PM
Have you solved the problem?
