monitoring port packets

[zeitzytoun]

Hello,

How we can get the information presented in this image through command line (the target switch is cisco sf302-08pp)

Thanks in advance.

[marce1000]

 - Try show interfaces status Gigabitethernet 1 (e.g.)

 M.

[balaji.bandi]

There are SMB Switches with Limited command line access : you can refer below admin guide :

https://www.cisco.com/c/dam/en/us/td/docs/switches/lan/csbms/sf30x_sg30x/administration_guide/CLI_300_1_2_9.pdf

[Georg Pauwen · Accepted solution]

Hello,

the CLI is limited on the SF302. Use the command:

show interfaces counters

Page 10 (Section 23) of the attached guide shows the available commands.

https://www.cisco.com/c/dam/en/us/td/docs/switches/lan/csbms/sf30x_sg30x/administration_guide/CLI_Nikola300_1_3_7.pdf

[zeitzytoun]

thanks for your help,

I have another question, how can I get the data of Packets with Errors column  in Receive Statistics part.

[Georg Pauwen]

Hello,

show interfaces counters [interface-id | detailed

[zeitzytoun]

Hello,

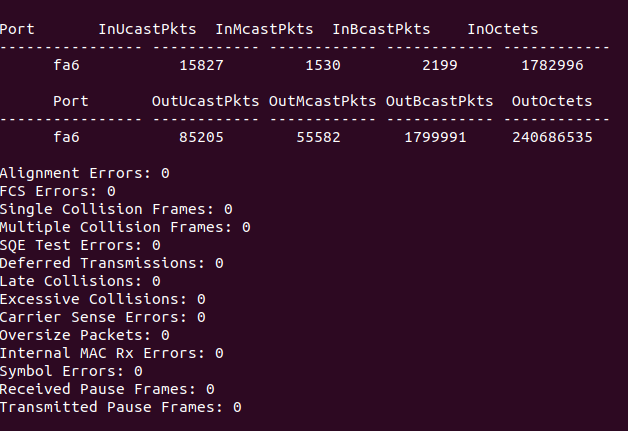

After running this command (show interfaces counters [interface-id | detailed ) we got the output as shown in the image below, can you tell us which attribute/s specifically represents Packets with Errors column.

Thanks in advance.
